一、概述
片式给油器适用于小型机器设备的干油集中润滑系统，与单线干油泵或多点干油泵配合使用，组成单线集中润滑系统，可自动向最多约100个润滑点定时、定量地供送润滑脂。每块给油器上均设有指示装置，可及时检查出油情况。
| |
| 二、技术参数 |
|
|
型号 |
组合片数 |
给油孔数 |
公称压力Mpa |
每孔给油量ml/循环 |
重量kg |
|
PSQ-31 |
3 |
6 |
10 |
0.15 |
0.9 |
|
PSQ-41 |
4 |
8 |
1.2 |
|
PSQ-51 |
5 |
10 |
1.8 |
|
PSQ-61 |
6 |
12 |
1.8 |
|
PSQ-31A |
3 |
6 |
0.3 |
0.9 |
|
PSQ-41A |
4 |
8 |
1.2 |
|
PSQ-51A |
5 |
10 |
1.5 |
|
PSQ-61A |
6 |
12 |
1.8 |
|
PSQ-33 |
3 |
6 |
0.5 |
6.8 |
|
PSQ-43 |
4 |
8 |
11.3 |
|
PSQ-53 |
5 |
10 |
12.2 |
|
PSQ-63 |
6 |
12 |
13.7 |
|
PSQ-33A |
3 |
6 |
1.2 |
6.8 |
|
PSQ-43A |
4 |
8 |
11.3 |
|
PSQ-53A |
5 |
10 |
12.2 |
|
PSQ-63A |
6 |
12 |
13.7 |
|
PSQ-33B |
3 |
6 |
2.0 |
6.8 |
|
PSQ-43B |
4 |
8 |
11.3 |
|
PSQ-53B |
5 |
10 |
12.2 |
|
PSQ-63B |
6 |
12 |
13.7 | |
| |

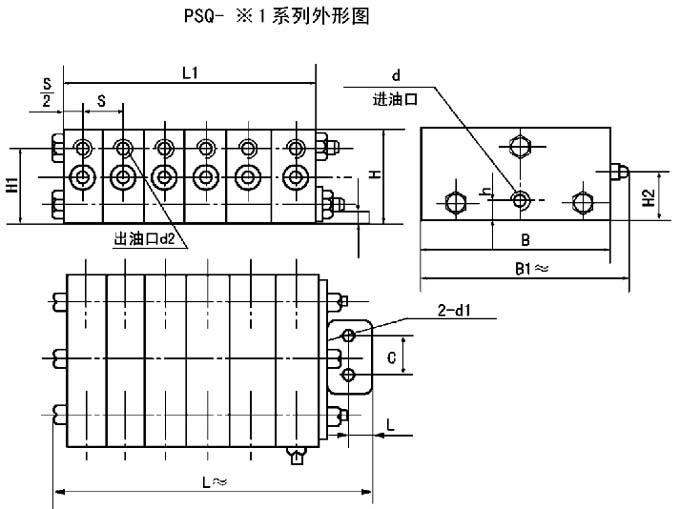

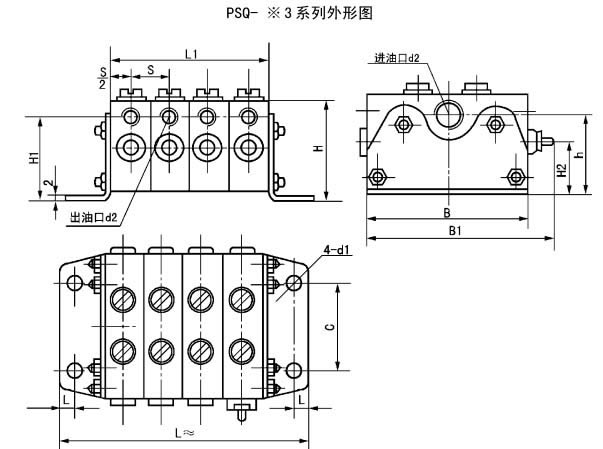

| 三、外形尺寸 |
 |
 |
|
型号 |
B |
B1 |
C |
L |
L1 |
H |
H1 |
H2 |
h |
s |
d |
d1 |
d2 |
L2 |
|
PSQ-31 |
70 |
75/81 |
15 |
70 |
48 |
38 |
31 |
18 |
8 |
16 |
M10x1 |
7 |
M10x1 |
9 |
|
PSQ-41 |
86 |
64 |
|
PSQ-51 |
102 |
80 |
|
PSQ-61 |
118 |
96 |
|
PSQ-33 |
100 |
123/133 |
60 |
1335 |
75 |
68 |
57.5 |
30 |
54.5 |
25 |
M15x1.5 |
9 |
M14x1.5 |
10 |
|
PSQ-43 |
160 |
100 |
|
PSQ-53 |
185 |
125 |
|
PSQ-63 |
210 |
150 | |
| |
四、使用说明
1、给油器出油情况可通过观察指示装置进行检查，也可装设电气行程开关监控。

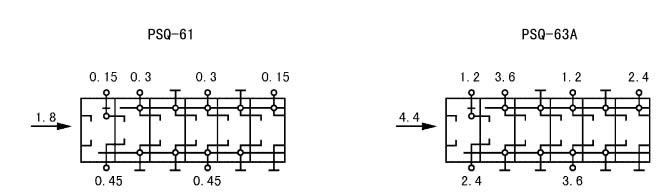

2、如某些润滑点需要的润滑脂量大于表列数值，可将给油器任意组合（见附图）。使供油量成倍增加。 |
 |
| |
